Cash Flow Graph

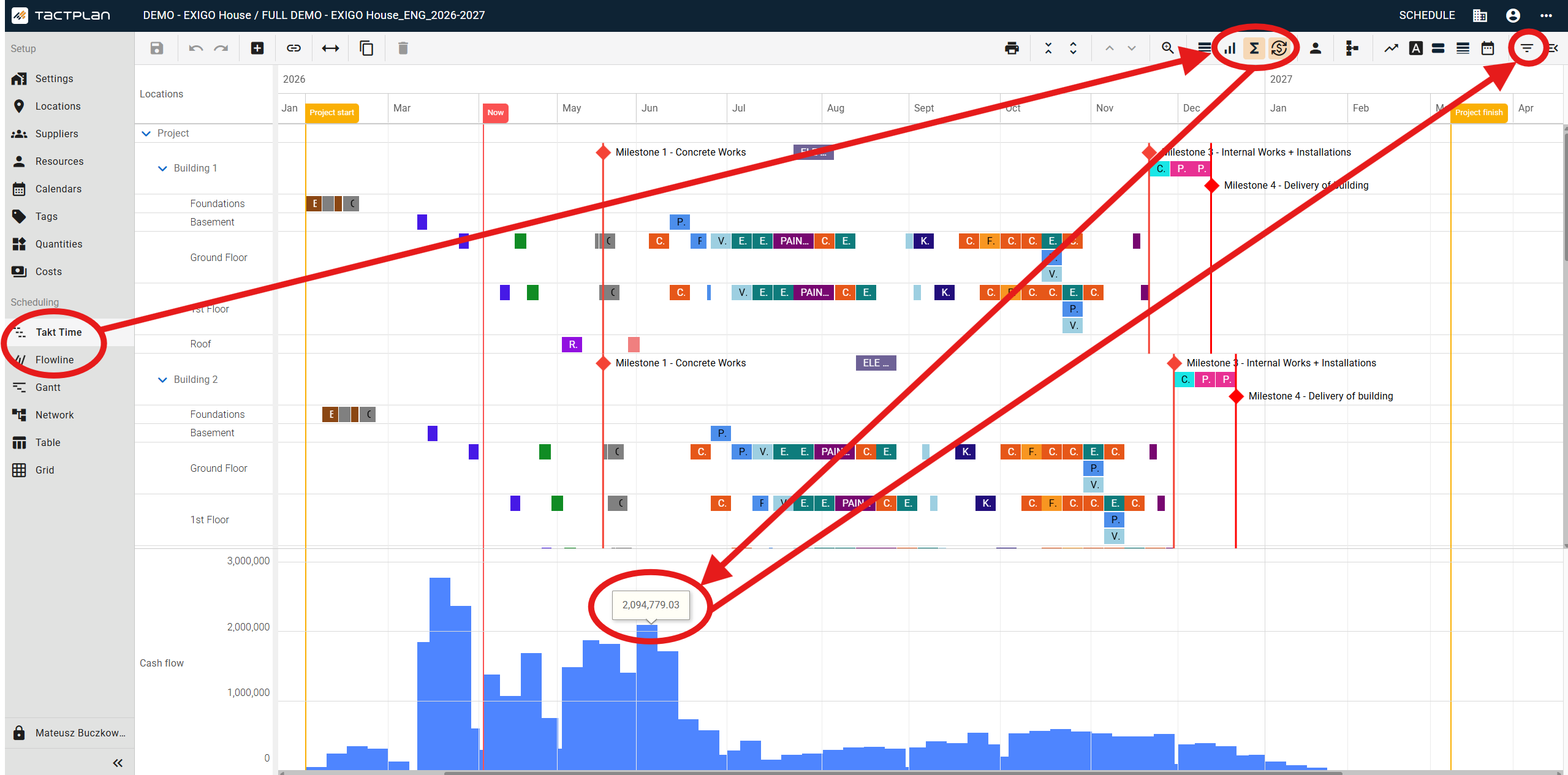

How to Display the Cash Flow Graph

1. Navigate to Takt Time or Flowline view.
2. Click the Show cash flow graph button in the toolbar.
3. Hover over the cash flow graph to view detailed values based on your linked cost items.
4. Apply filters to adjust the displayed cash flow values as needed.

5.

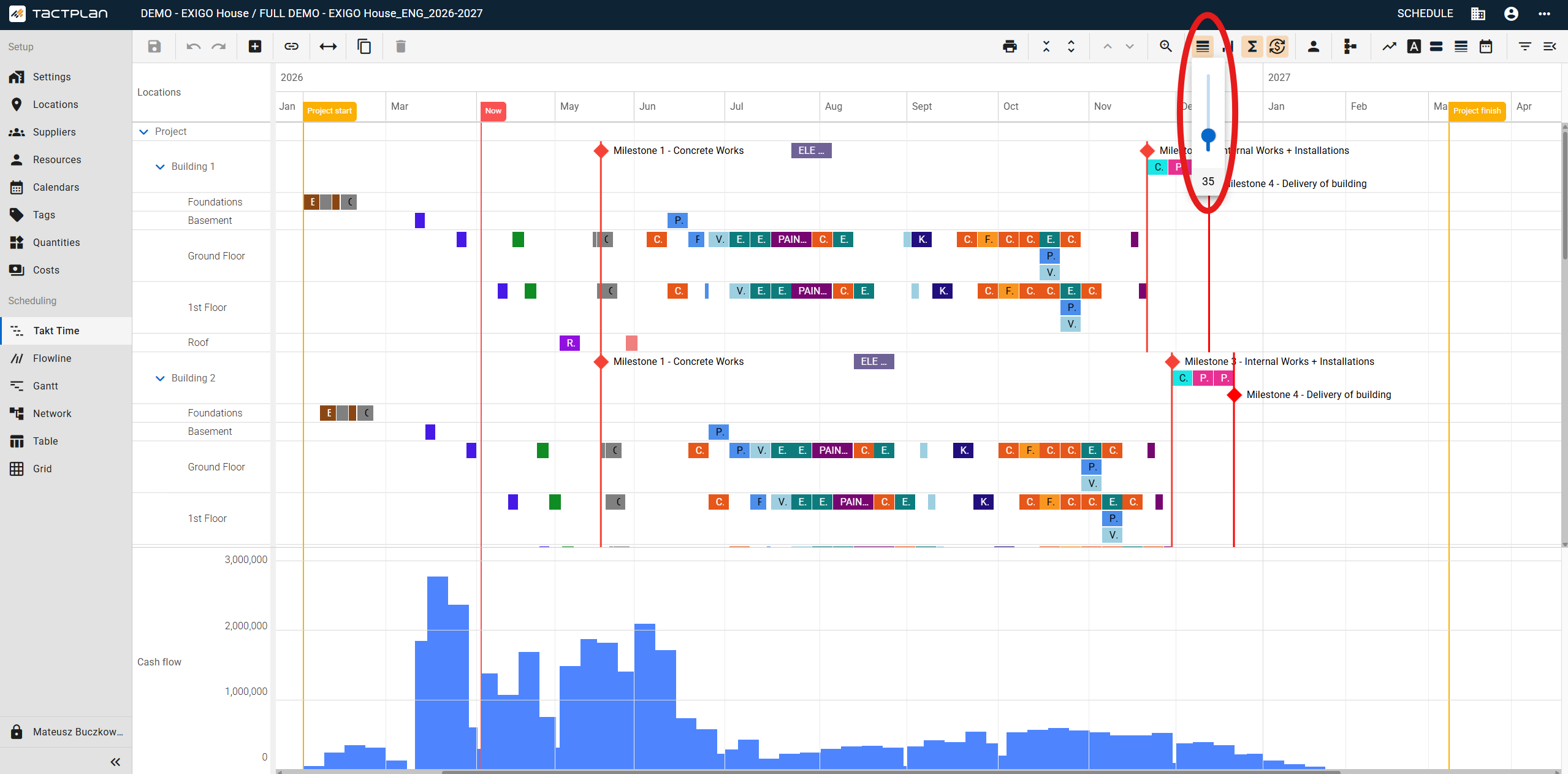

How to Adjust the Cash Flow Graph Height

1. Enable Show cash flow graph.
2. Click Show cash flow graph height.
3. Drag the slider to adjust the height:
   • Minimum height: 20
   • Maximum height: 100

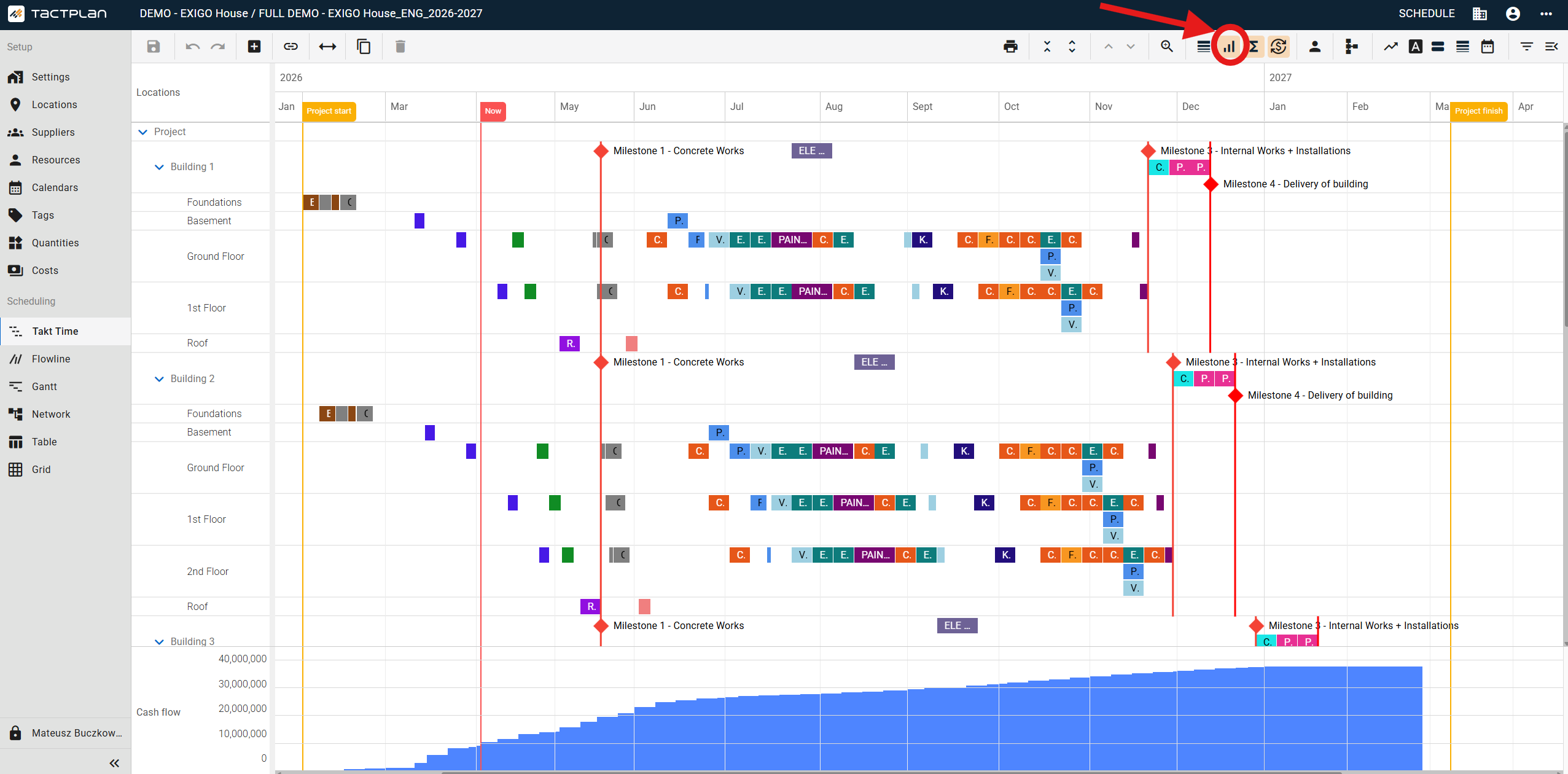

How to View Accumulated Cash Flow

1. Enable Show cash flow graph.
2. Click Accumulate.

The graph will display accumulated cash flow values over time, showing a constant value where no new positive or negative costs are added.

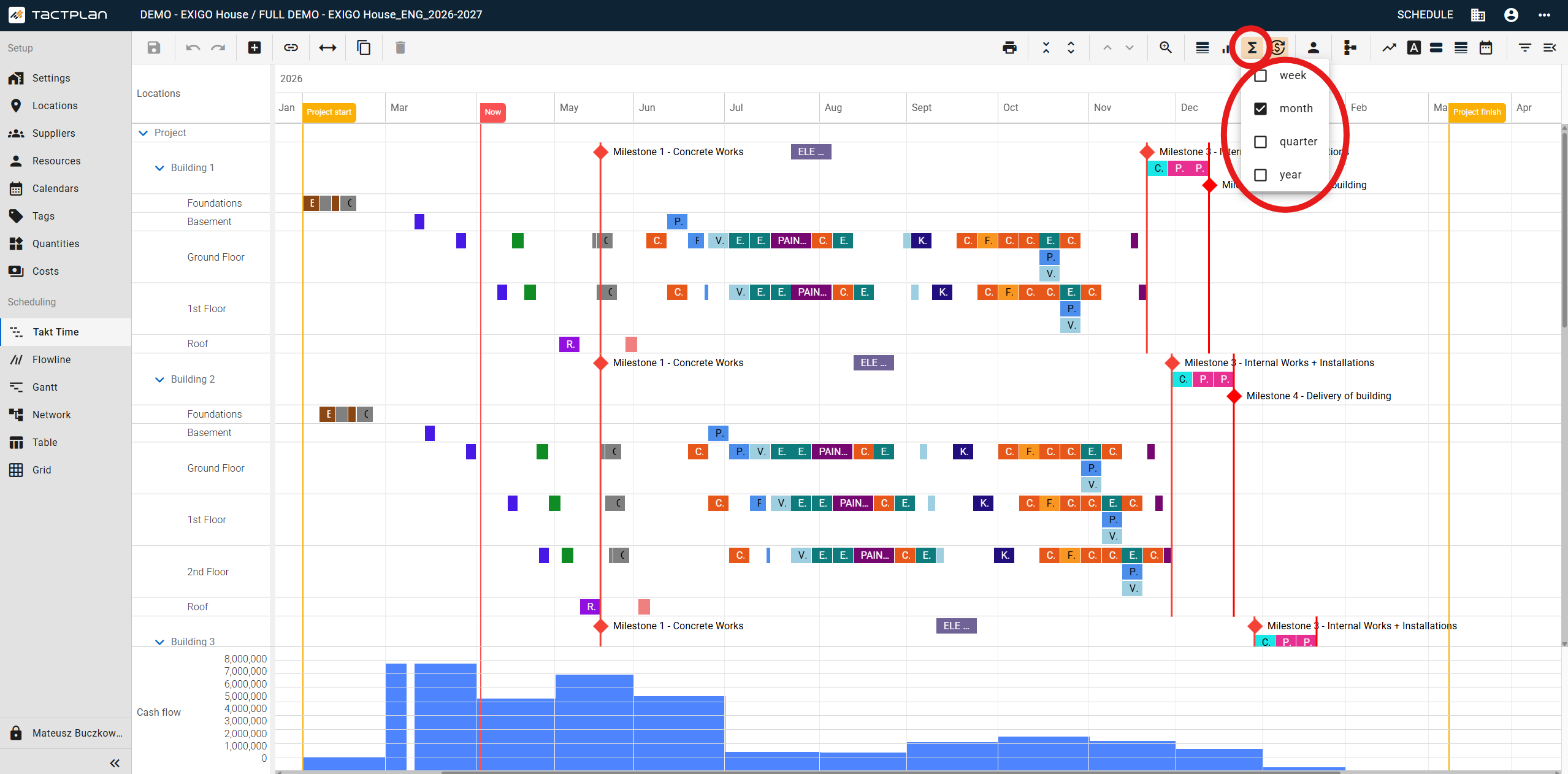

How to Summarize Cash Flow by Time Period

1. Enable Show cash flow graph.
2. Click Summarize by time period.
3. Select your preferred time period:
   • Week - Cash flow summarized weekly
   • Month - Cash flow summarized monthly
   • Quarter - Cash flow summarized quarterly
   • Year - Cash flow summarized annually

Tip: You can enable both Accumulate and Summarize by time period simultaneously to view accumulated values organized by your chosen time period.

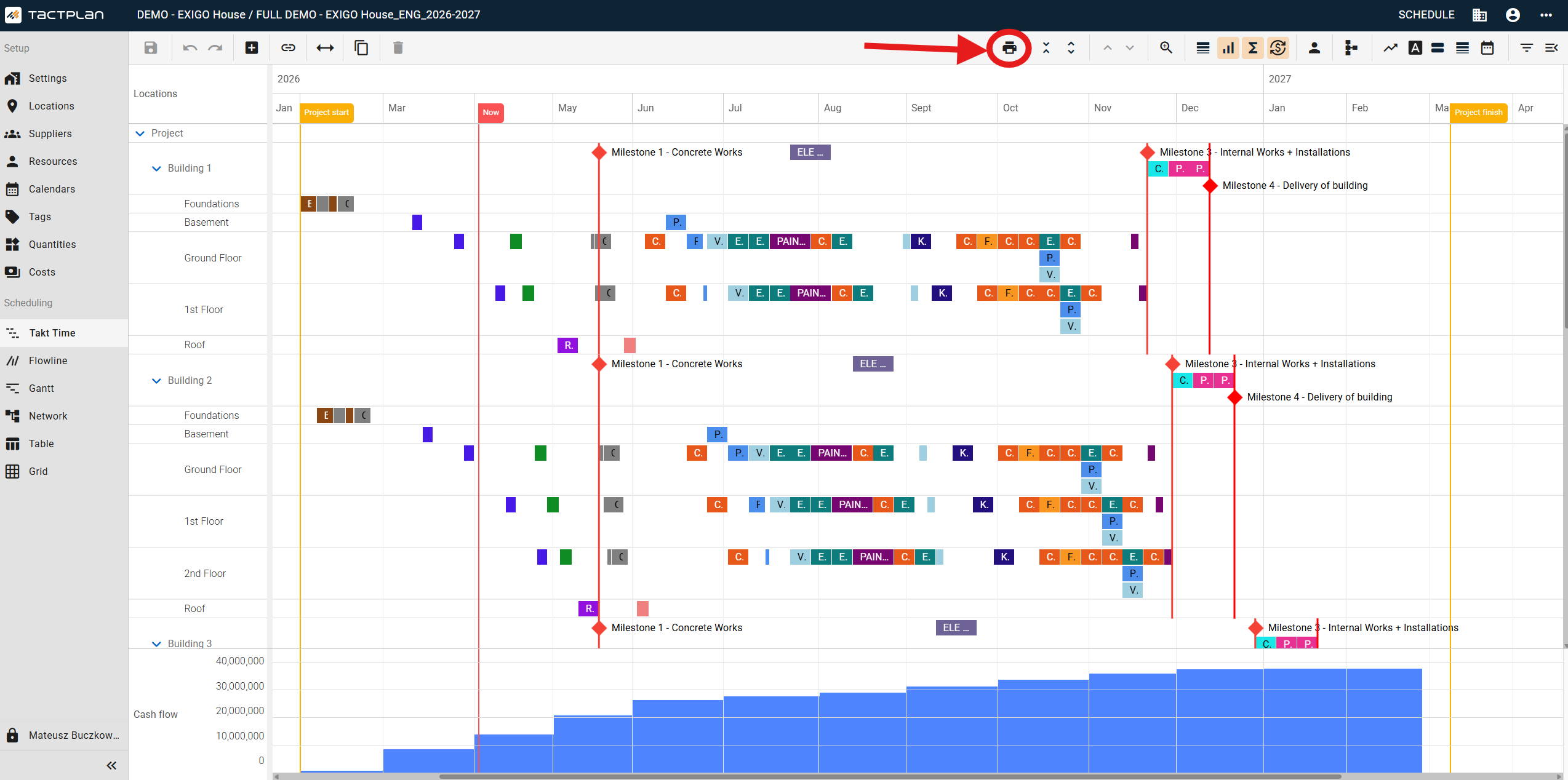

How to Print the Cash Flow Graph

1. Enable Show cash flow graph.
2. Click Print in the toolbar.
3. Configure your print settings.
4. Click Update preview to review.
5. Click Print to generate your document.

The printed output will reflect all active cash flow graph options and your selected print settings.
