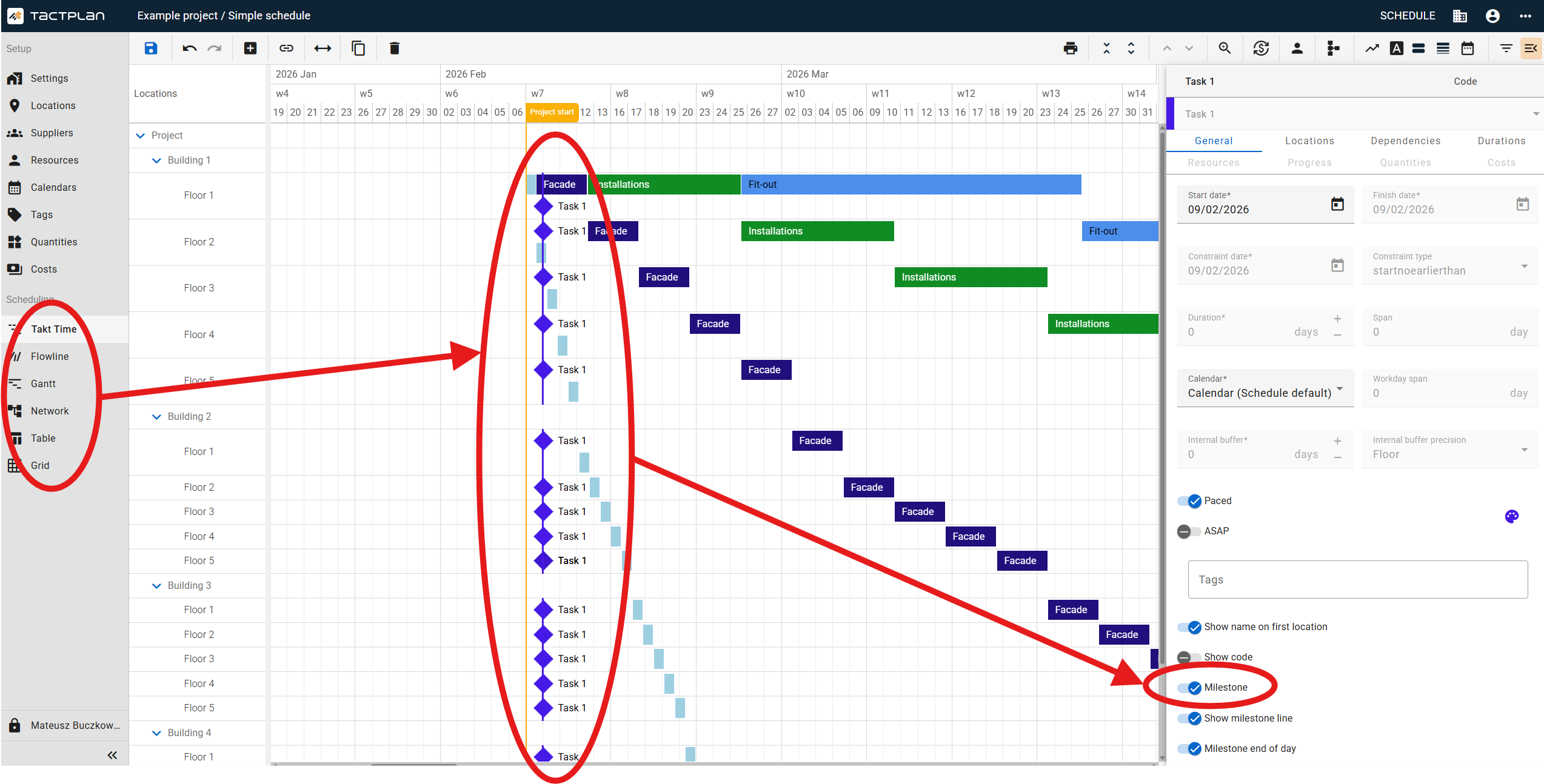

Convert a Task to a Milestone
Note: When converting a task to a milestone, Progress and links to Resources, Quantities, and Costs will be permanently deleted.
- Select the task you want to convert.
- Open the Task details panel on the right side.
- Go to the General tab.
- Toggle on the Milestone option.
- Click OK in the confirmation dialog.
After conversion, the Duration, Span, Workday span, and Internal buffer are set to "0" and become disabled. The Resources, Progress, Quantities, and Costs tabs are also disabled.
Convert a Milestone Back to a Task
- Select the milestone you want to convert.
- Open the Task details panel on the right side.
- Go to the General tab.
- Toggle off the Milestone option.
The Duration is automatically set to "1" per location at the respective location precision. Resources, Progress, Quantities, and Costs tabs become enabled, but previous links are not restored automatically.
Editing Milestones

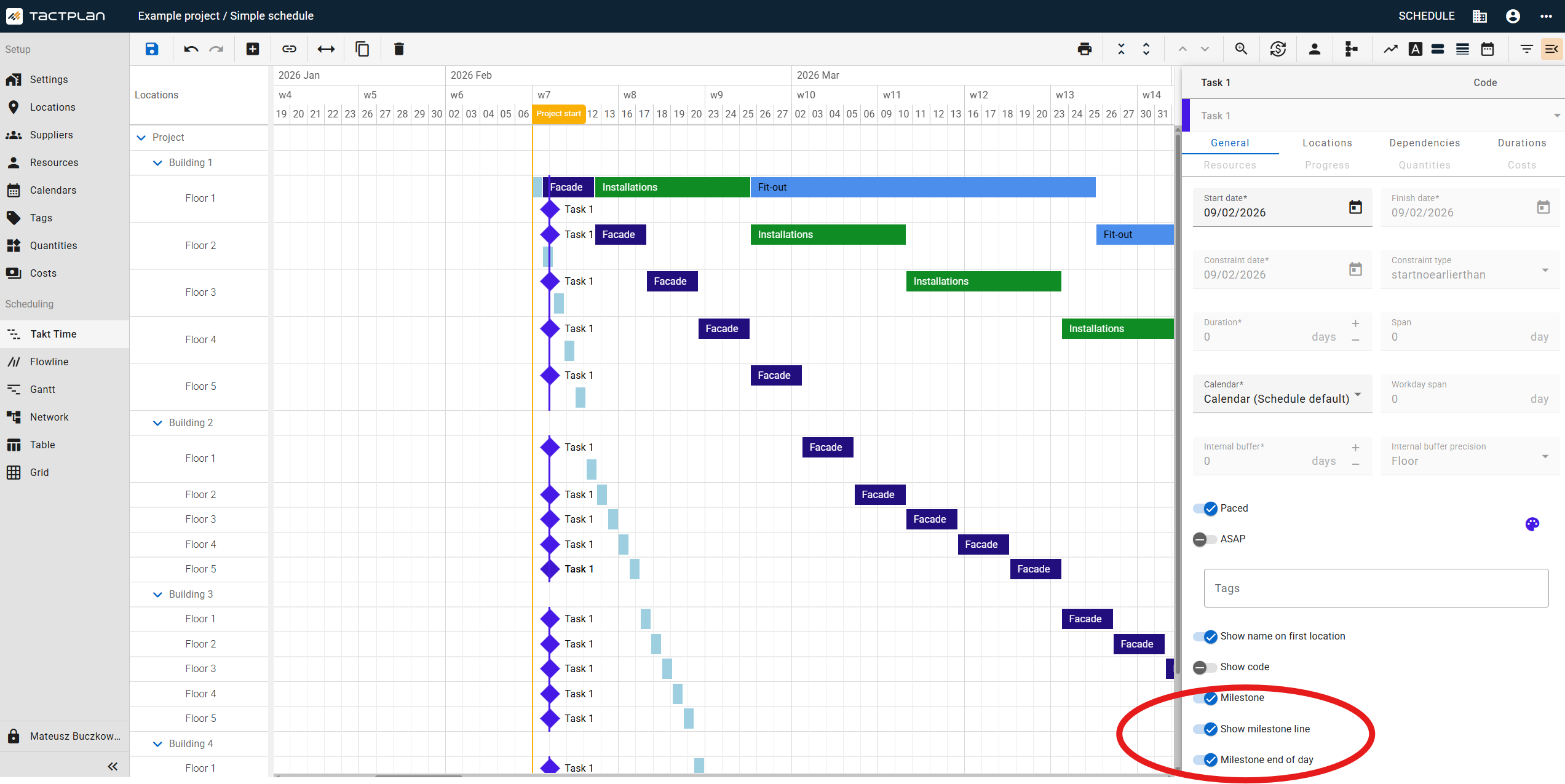

Show or Hide Milestone Lines
- Select a milestone in your schedule.
- Open the Task details panel on the right side.
- Go to the General tab.
- Toggle on Show milestone line to display vertical lines across locations.
- Toggle off Show milestone line to hide the lines.
Milestone lines appear in Takt Time view and cover the milestone location and any child locations based on the location precision level.
Move a Milestone by Editing the Start Date
- Select the milestone you want to move.
- Open the Task details panel on the right side.
- Go to the General tab.
- Edit the Start date field to your desired date.

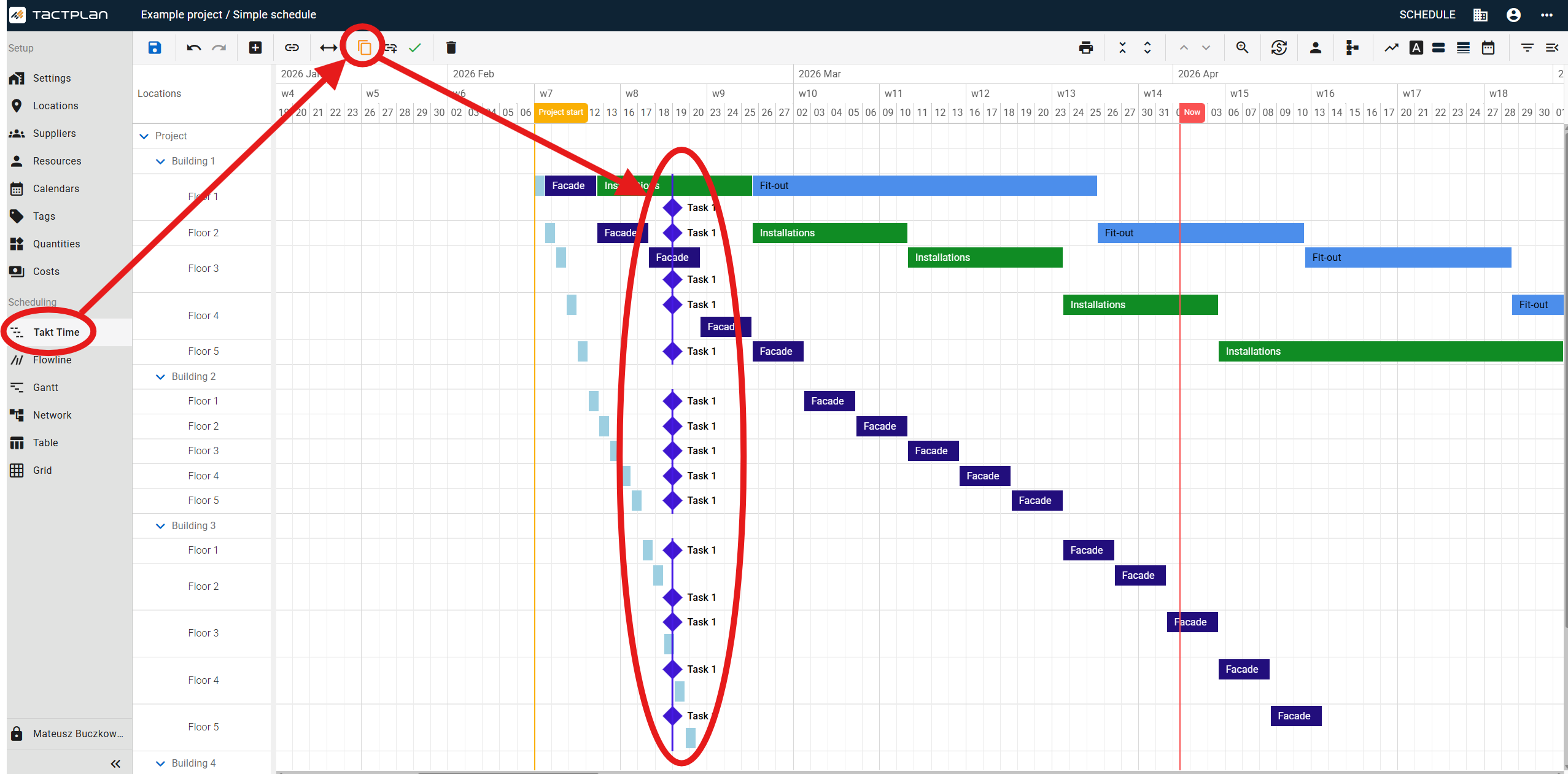

Move a Milestone by Dragging
- Click the Drag and move task icon in the toolbar.
- Click and drag the milestone to the new position in the schedule.
- Release to place the milestone at the new date.

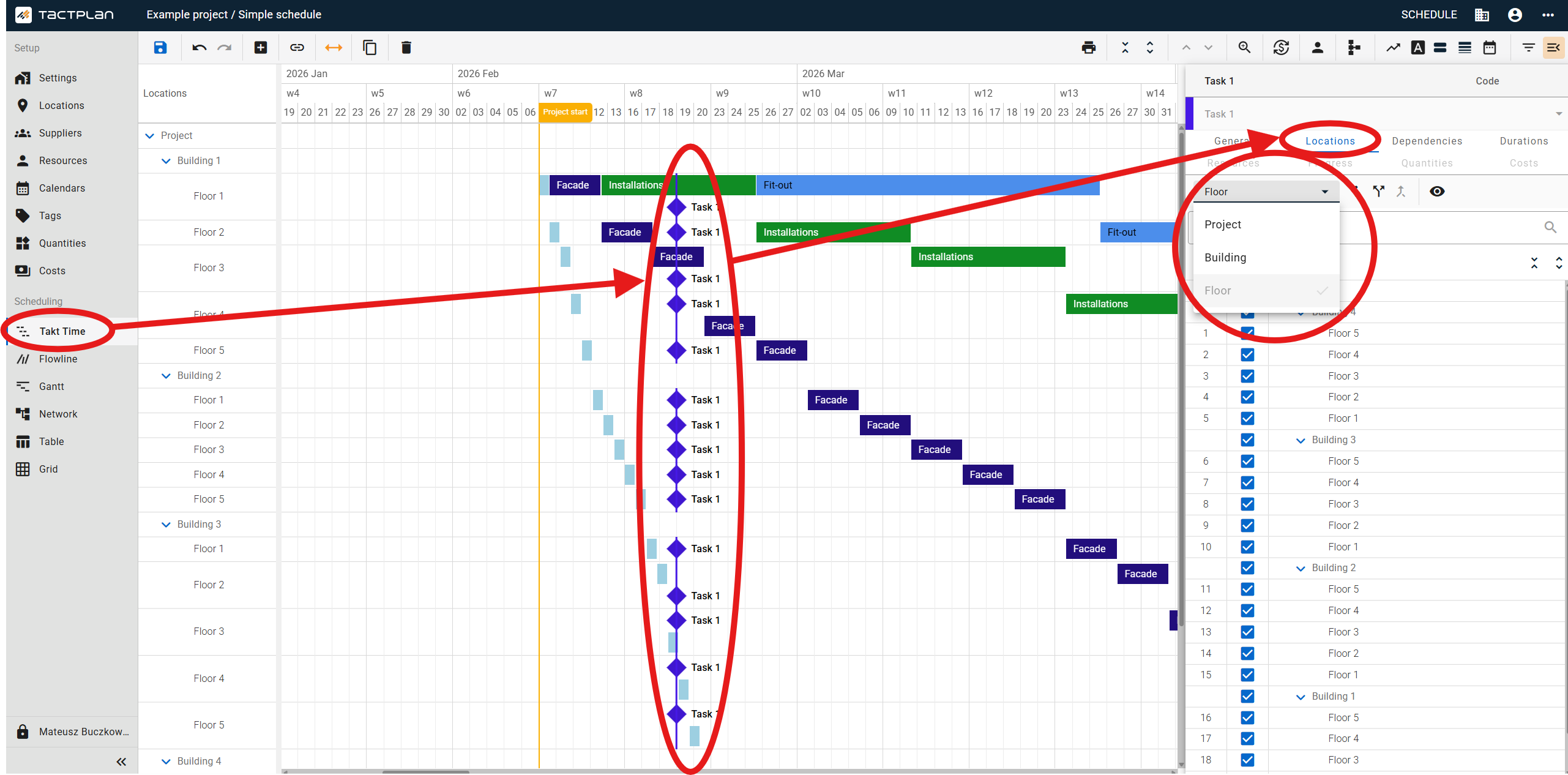

Change Milestone Location Precision
- Select the milestone.
- Open the Locations tab in the Task details panel.
- Select the desired location precision level (e.g., Building, Floor).
Copy a Milestone
- Select the milestone you want to copy.
- Click the Copy tasks icon in the toolbar.
The copied milestone includes any tags that were linked to the original milestone.
Delete a Milestone
- Select the milestone you want to delete.
- Click the Delete tasks icon in the toolbar.
Milestone Display in Schedule Views
Milestones are displayed differently depending on which schedule view you're using:
Takt Time View
Milestones appear as a diamond shape with the name displayed to the right. When "Show milestone line" is enabled, a vertical line extends across the milestone location and any child locations based on the location precision level.
Tip: Milestone lines help you visualize key deadlines across multiple locations at once.
Flowline View
Milestones appear as a vertical line with the name positioned to the left of the line. The "Show milestone line" toggle does not affect the appearance in this view.
Gantt View
Milestones appear as a diamond shape with the name displayed to the left. The "Show milestone line" toggle does not affect the appearance in this view.
Network View
Milestones are shown as subtasks within the network diagram. The "Show milestone line" toggle does not affect the appearance in this view.
Table View
Milestones are displayed as tasks in the table structure. The "Show milestone line" toggle does not affect the appearance in this view.
Grid View
Milestones are shown as subtasks in the grid structure. The "Show milestone line" toggle does not affect the appearance in this view.
Best Practice: Use Takt Time or Flowline views to get the best visual representation of milestones and their impact across your project timeline.
Milestone Linking Limitations
Milestones have certain limitations compared to regular tasks. They cannot be linked to:
- Quantities
- Costs
- Resources
- Progress tracking
Note: Milestones will not appear in this list, as they cannot be linked to quantities.
Note: Milestones will not appear in this list, as they cannot be linked to costs.
Why this matters: Milestones are designed to mark key dates and deadlines in your schedule, not to track work quantities or costs. Use regular tasks when you need to track resources, costs, quantities, or progress.
