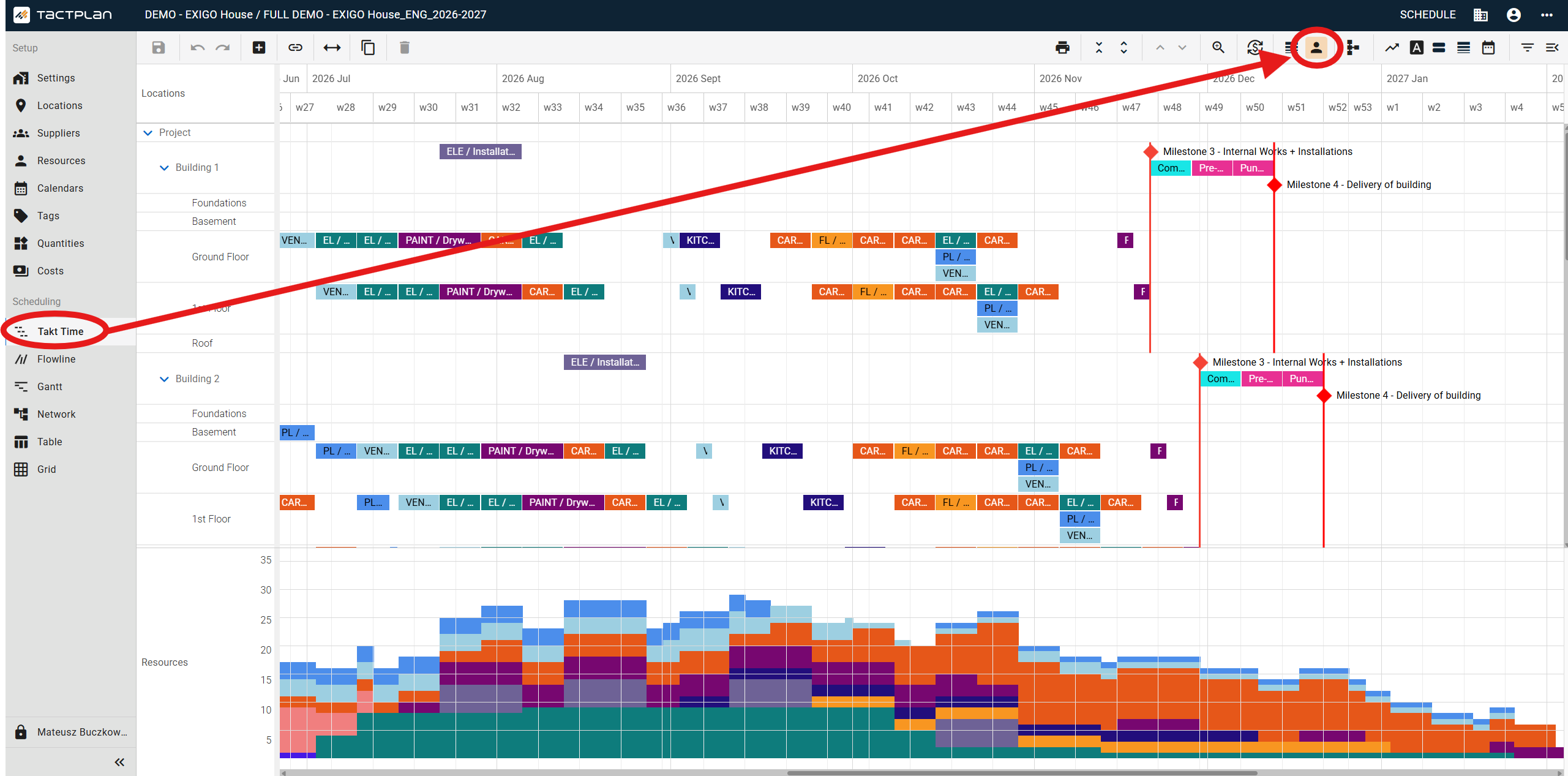

How to Enable the Resource Graph
- Navigate to the Takt Time or Flowline view in your schedule.
- Enable the resource graph option.
- View the resource graph displayed at the bottom of the schedule under the Locations tab, labeled "Resources."
Note: The resource graph cells align with your schedule's duration, making it easy to visualize resource allocation over time. For easier analysis of selected resources you can use filtering by pressing a filter button.

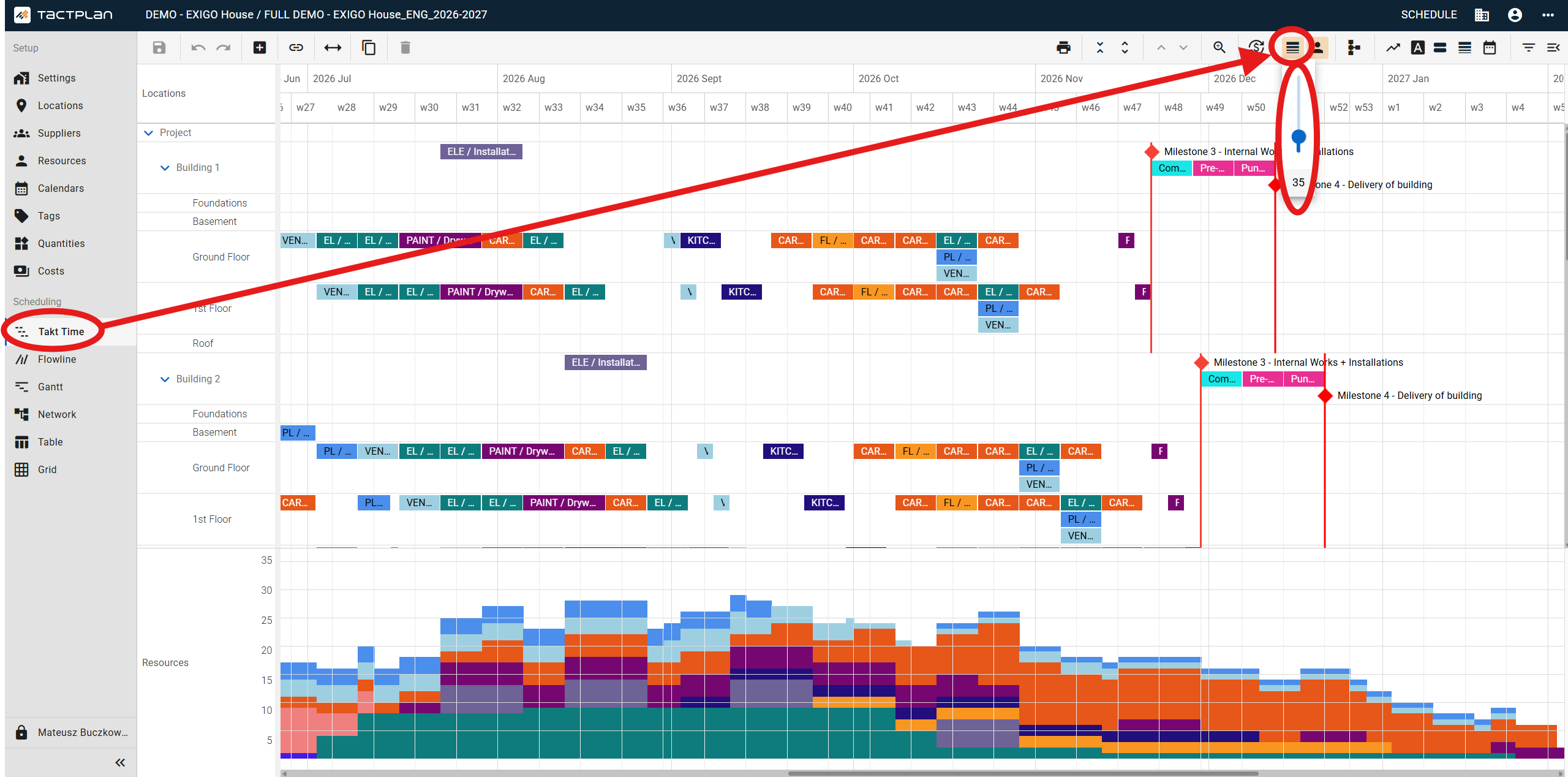

How to Change the Resource Graph Display Height
- Enable "Show resource graph" if not already active.
- Click "Resource graph height."
- Use the slider that appears to adjust the height.
- Drag to minimum (20) for a compact view or maximum (100) for detailed visibility.
- Click anywhere on the slider to set a custom height value.
Tip: Adjust the resource graph height based on the complexity of your schedule. Use a larger height when working with multiple resources on tasks with extended durations.
