Understanding Takeoff Items and Quantities
A Takeoff Item consists of more or more quantities values distributed to the location breakdown structure. The Takeoff Item stores the Name, Consumption rate (default), Unit, Location Precision and any Linked Tasks. To simplify the term Quantity is used as a substitute for Takeoff Item.

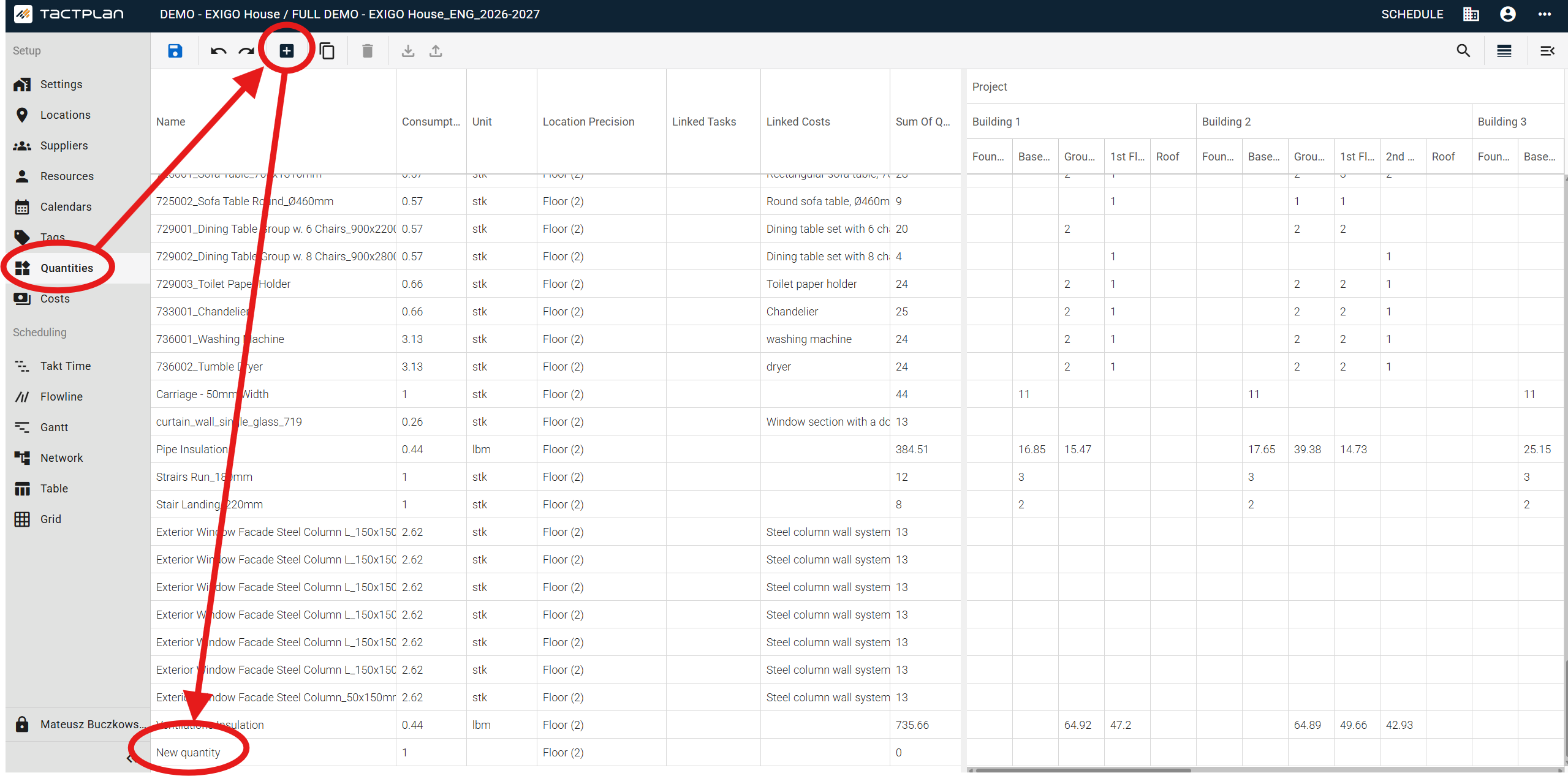

How to Add a Quantity
- Navigate to Setup > Quantities in the left-hand navigation.
- Click the Add quantity button in the toolbar. A new row appears at the bottom of the grid with the following defaults:
- Name: "New quantity"
- Consumption: 1
- Unit: (empty)
- Location Precision: Lowest location level where a location is defined
- Linked Tasks: (empty)
- Quantities: "0" for locations matching the location precision; empty for locations on lower levels
How to Edit a Quantity
Name
- Double-click the Name cell to make it editable.
- Type the new name and press Enter, Tab, or click elsewhere to confirm.
The name field cannot be left empty. A validation message will appear if you try to leave the cell without entering a value.
Consumption
- Double-click the Consumption cell to make it editable.
- Enter a numeric value of 0.00001 or higher and press Enter, Tab, or click elsewhere to confirm.
The consumption value must be a number and cannot be lower than 0.00001. A validation message will appear for invalid entries.
Unit
- Double-click the Unit cell to make it editable.
- Type the desired unit and press Enter, Tab, or click elsewhere to confirm.
Location Precision
- Double-click the Location Precision cell to open the dropdown search.
- Type to search for a location level, then select the desired option from the list.
Tip: Selecting a higher location level will sum up quantities. Selecting a lower location level will distribute quantities evenly.
You must select a value from the list. Entering a string that does not match any option will trigger a validation message.
Quantity Values (per Location)
- Double-click a quantity cell for a location that matches the set location precision.
- Enter a numeric value of 0 or higher and press Enter, Tab, or click elsewhere to confirm.
Quantity values must be numbers and cannot be lower than 0. Cells for locations outside the set location precision are not editable.
How to Copy a Quantity
- Select one or more quantities by holding Ctrl and clicking each row.
- Click the Copy quantities button in the toolbar.
- Choose whether to keep task links:
- Keep task links disabled: Copies are placed at the bottom of the grid with no linked tasks.
- Keep task links enabled: Copies are placed at the bottom of the grid and retain the same task links as the originals.
How to Delete a Quantity
- Select one or more quantities by holding Ctrl and clicking each row.
- Click the Delete button in the toolbar. A confirmation dialog appears listing the selected quantities.
- Click Delete to confirm.
Note: Deleting quantities that are linked to tasks will also remove those links. Review the confirmation dialog carefully before proceeding.

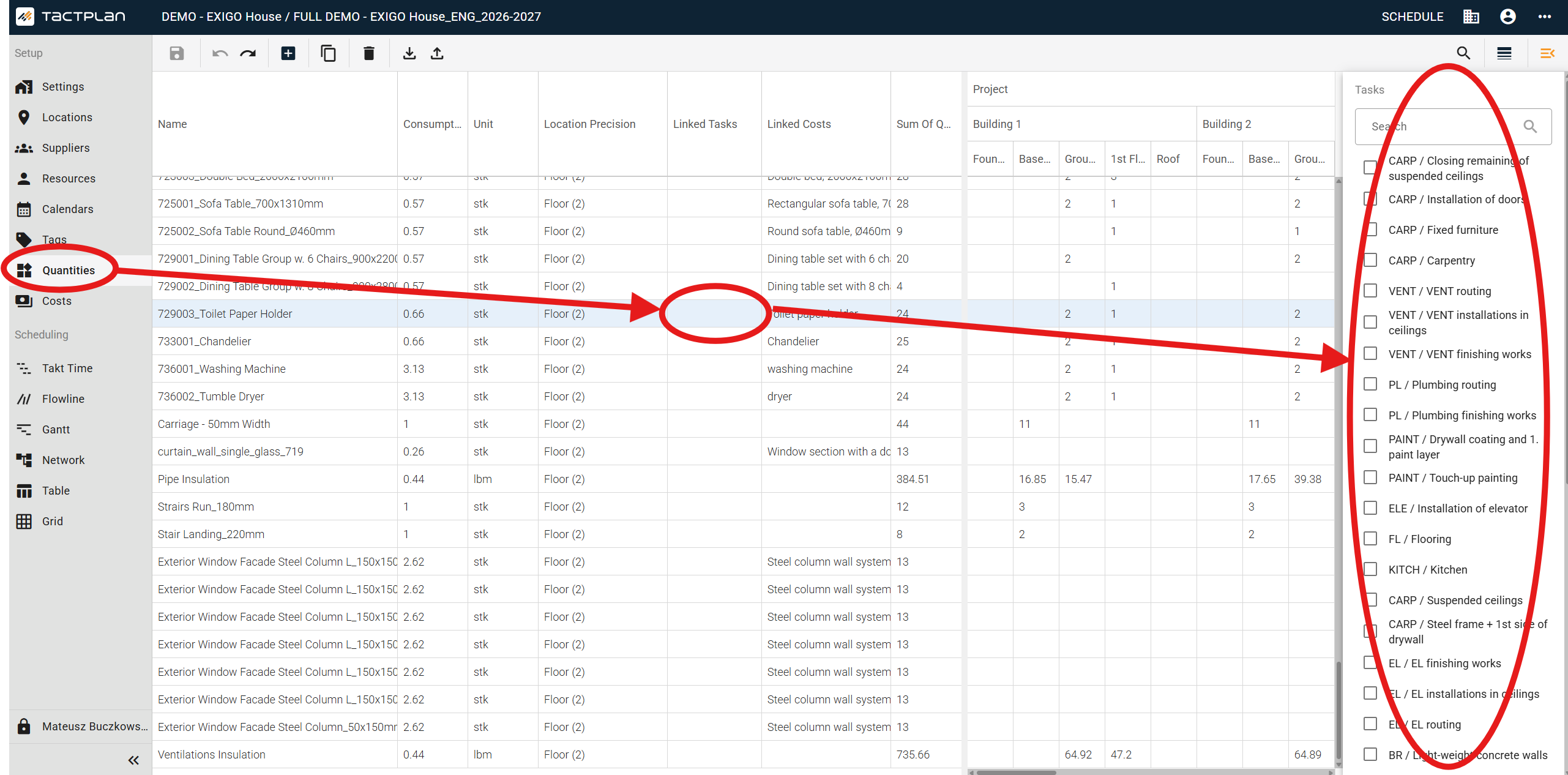

How to Link Tasks to a Quantity
- Select one or more quantities by holding Ctrl and clicking each row.
- Open the Tasks panel by double-clicking a cell in the Linked Tasks column, or by clicking the link icon in the toolbar.
- Use the search field to filter the task list. You can enter multiple search strings — only matching tasks will be displayed. Click × on a chip or press Delete to clear a search string.
- Check the checkbox next to a task to link it to the selected quantities.
- Uncheck the checkbox next to a task to remove the link from the selected quantities.
Note: If no quantity is selected, the Tasks panel can still be opened but task checkboxes will be disabled.
