Managing Resources

Understanding Resources

Resources represent the labor teams or trade groups, such as carpenters, electricians, or crane operators, that are assigned to tasks in your schedule. It can also represent a nonlabor, such as machinery or equipment. You can add, edit, and delete resources in the Setup area of your schedule.

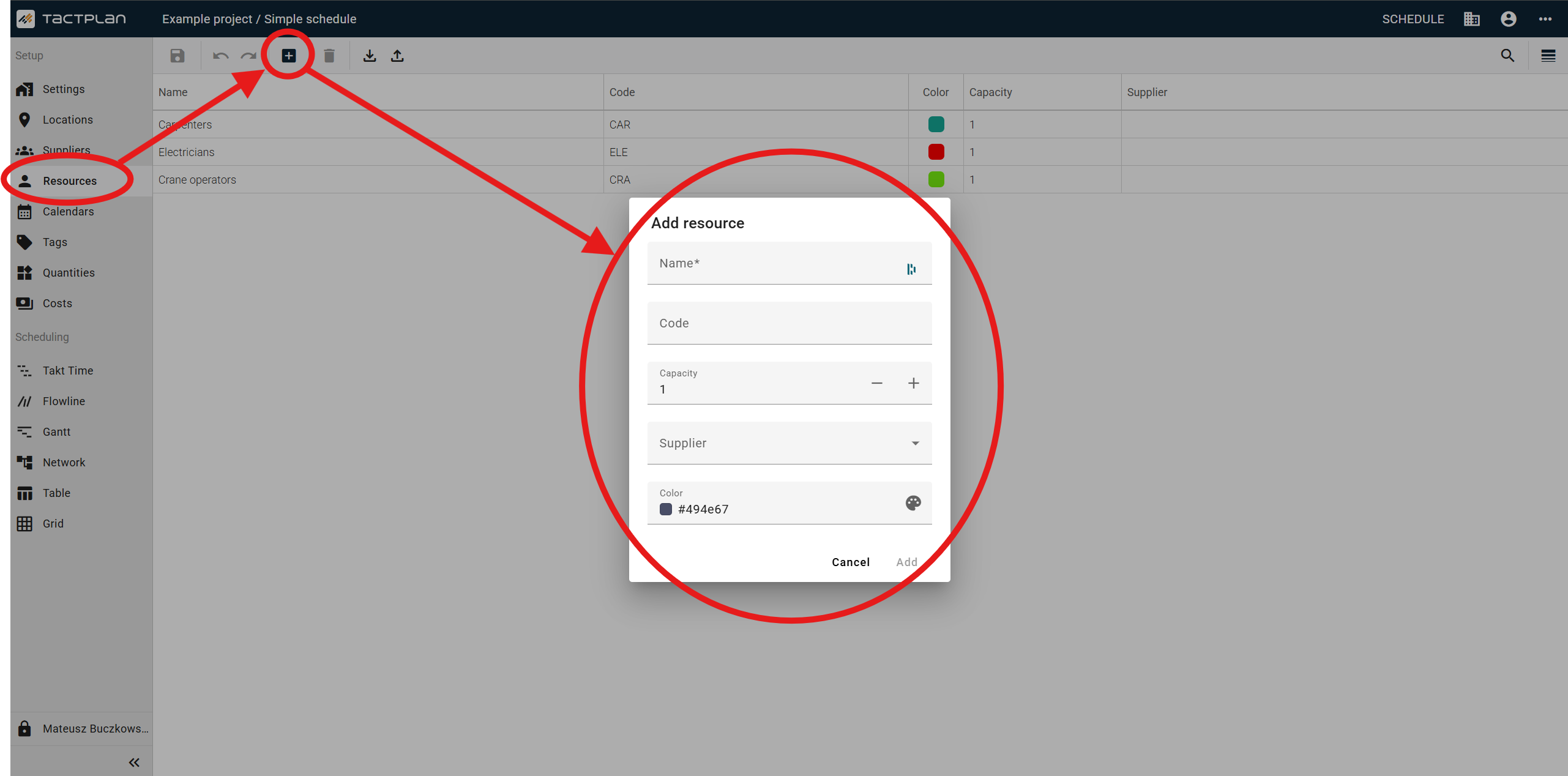

How to Add a Resource

1. Navigate to Setup > Resources in the left side panel.
2. Click the + (Add) button in the toolbar. The Add resource dialog appears.
3. Enter a Name for the resource. This field is required — the Add button stays disabled until a name is provided.
4. Enter a short Code to identify the resource quickly across the schedule.
5. Set the Capacity using the – and + controls to define how many units of this resource are available.
6. Select a Supplier from the dropdown list. If no suppliers have been added yet, the list will show None. You can add suppliers under Setup > Suppliers first, then return to add the resource.
7. Choose a Color to visually distinguish this resource on the schedule by clicking the color palette icon.

8. Click Add to create the resource.



How to Edit a Resource

1. Navigate to Setup > Resources.
2. Double-click the resource you want to update. The Edit resource dialog appears.
3. Update any of the fields — Name, Code, Capacity, Supplier, or Color.
4. Click Update to apply your changes.

How to Delete a Resource

You can delete a single resource or multiple resources at once.

To delete a single resource:

1. Navigate to Setup > Resources.
2. Right-click the resource you want to remove.
3. Select Delete from the context menu. The resource is removed immediately.

To delete multiple resources:

1. Navigate to Setup > Resources.
2. Select the resources you want to remove by clicking each row.
3. Click the Delete icon in the toolbar. The Delete resources dialog appears, showing a list of the resources about to be deleted.
4. Click Delete to confirm. All selected resources are removed.
